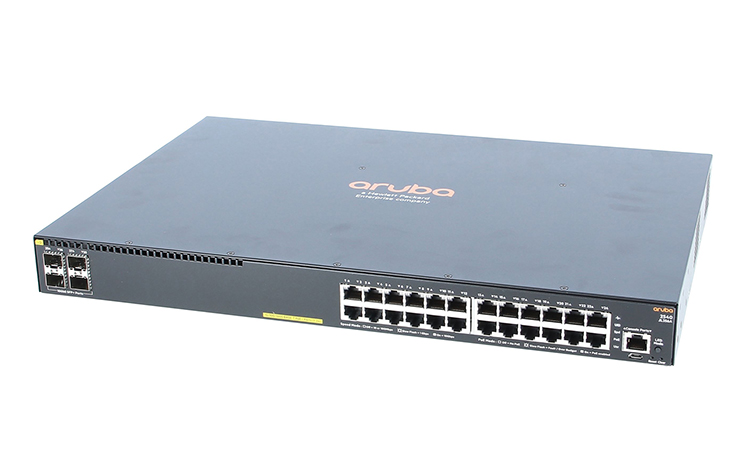

JL356A ⭕ Vật tư điện Hà Nội báo giá phân phối Aruba JL356A Aruba 2540 24G PoE+ 4SFP+ Switch chính hãng Hpe Aruba, giá tốt, giao hàng toàn quốc
I/O ports and slots | |
I/O ports and slots | 48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 SFP+ 1/10GbE ports; PHY-less |
Additional ports and slots | |
Additional ports and slots | 1 dual-personality (RJ-45 or USB micro-B) serial console port |
Physical characteristics | |
Dimensions | 17.42(w) x 9.7(d) x 1.73(h) in. (44.25 x 24.63 x 4.39 cm) (1U height) |
Weight | 6.83 lb (3.10 kg) |
Performance | |
1,000 MB Latency | < 3.8 µs (64-byte packets) |
10 Gbps Latency | < 1.6 µs (64-byte packets) |
Throughput | up to 112.0 Mpps |
Switching capacity | 176 Gbps |
Routing table size | 2,000 entries (IPv4), 1,000 entries (IPv6) |
MAC address table size | 16,384 entries |
Environment | |
Operating temperature | 32°F to 113°F (0°C to 45°C); up to 5,000 Feet, -0°C to 40°C (32°F to 104°F) up to 10,000 Feet |
Operating relative humidity | 15% to 95% @ 104°F (40°C), noncondensing |
Nonoperating/Storage temperature | -40°F to 158°F (-40°C to 70°C); up to 15,000 Feet |
Nonoperating/Storage relative humidity | 15% to 95% @ 149°F (65°C), noncondensing |
Acoustic | Power: 54.1 dB, Pressure: 40.2 dB |
Airflow direction | Side-to-side |
Electrical characteristics | |
Frequency | 50/60 Hz |
Maximum heat dissipation | 159 BTU/hr (167.74 kJ/hr) |
Voltage | 100–127/200–240 VAC, rated |
Current | 0.9/0.6 A |
Maximum power rating | 46.6 W |
Idle power | 32.7 W |
Safety | |
Safety | UL 60950-1, 2nd Edition; EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013; IEC 60950-1:2005 +A1:2009 +A2:2013; CSA 22.2 No. 60950-1-07 2nd; EN 60825-1:2007/IEC 60825-1:2007 Class 1 |
Emissions | |
Emissions | VCCI Class A; CNS 13438; ICES-003 Class A; FCC CFR 47 Part 15, Class A; EN 55022: 2010/CISPR-22, Class A |
Immunity | |
Generic | EN 55024:2010/CISPR 24 |
ESD | IEC 61000-4-2 |
Radiated | IEC 61000-4-3 |
EFT/Burst | IEC 61000-4-4 |
Surge | IEC 61000-4-5 |
Conducted | IEC 61000-4-6 |
Power frequency magnetic field | IEC 61000-4-8 |
Voltage dips and interruptions | IEC 61000-4-11 |
Harmonics | EN 61000-3-2, IEC 61000-3-2 |
Flicker | EN 61000-3-3, IEC 61000-3-3 |
